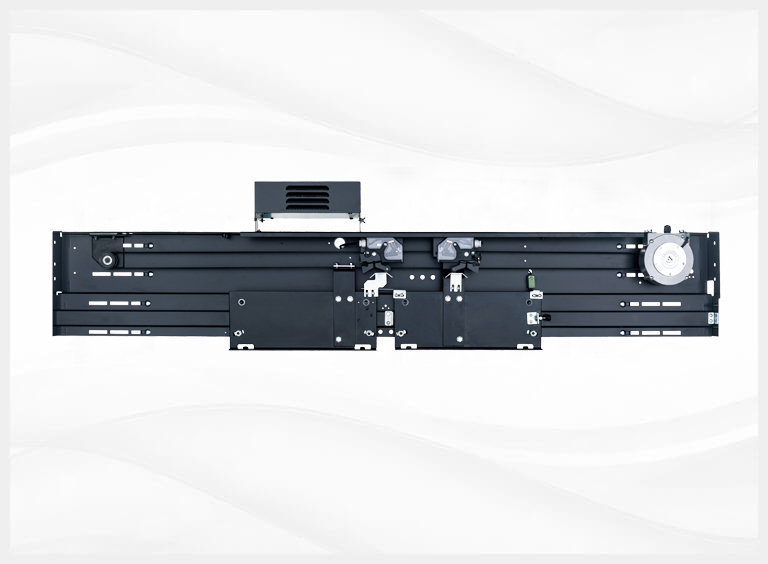

PRODUCT FEATURES
產品特點
- Using PM motor, large rotary torque, high efficiency and energy saving
- Highly smooth operation, achieve the completely closed loop control of the torque, speed and position
- Using magnetic encoder
- Using zinc plate integrally formed guide rail, more compact design
- Using asyn. door clutch, optional car door lock, car frame, top,front wall installation
- Total door panel weight≤160kg; Voltage:200-250 V, 50 /60 Hz
Product model
| JJ | 700 | 750 | 800 | 850 | 900 | 950 | 1000 | 1050 | 1100 | 1200 | 1300 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A1 | 1460 | 1560 | 1660 | 1760 | 1860 | 1960 | 2060 | 2160 | 2260 | 2460 | 2660 |
| AS | 根據轎廂轎架的直梁內尺寸確定 |
|---|---|
| EE | 根據轎廂深度的1/2確定 |
| B.b | 根據用戶要求確定 |
|---|---|
| HC | 矯頂安裝高度，根據客戶要求確定 |
